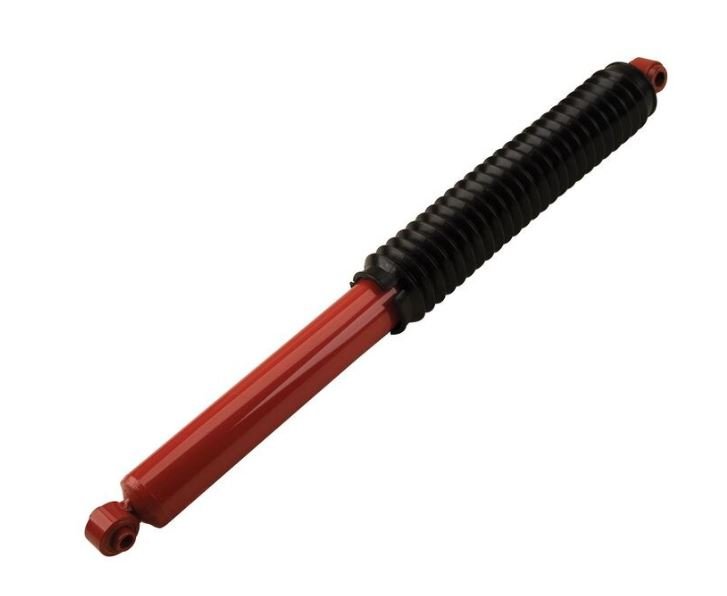

KYB MonoMax Shock Absorber 565011

KYB MonoMax Shock Absorber 565011.

Hit a pothole in an old Ranger with blown rear shocks and you’ll feel it in your teeth. The back end drops, bounces twice, then wallows for a second like it’s trying to decide whether it wants to stay on the road. Now add a trailer behind it. At sixty five miles an hour on the interstate, that same worn-out rear end starts to sway, and sway turns into something a lot closer to fear than driving. The KYB MonoMax Shock Absorber 565011 exists because that specific kind of terror, the rear-end shimmy in an aging truck or SUV, is completely preventable, and honestly it shouldn’t still be happening to anyone in 2026.

Engineering That Actually Matters

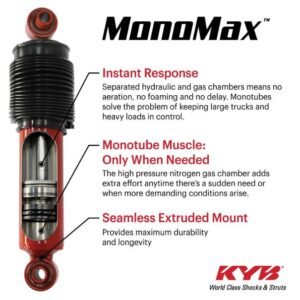

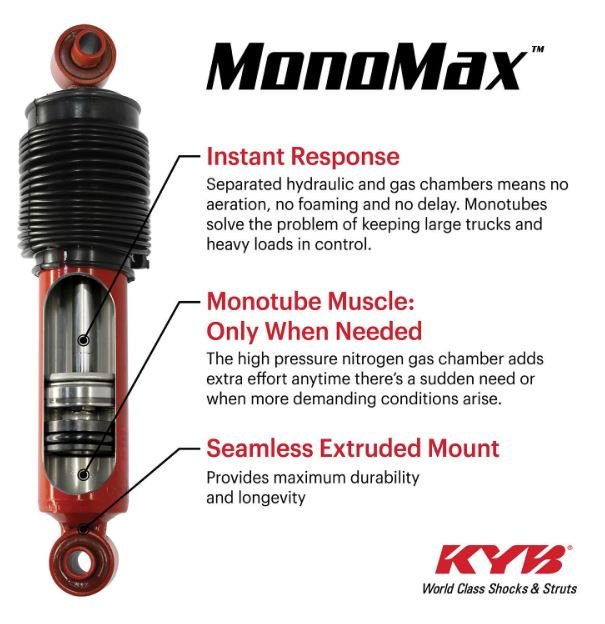

This is a monotube shock, not a twin-tube. That distinction sounds small until you’re towing up a grade in July and your old shocks start fading because the oil inside them can’t shed heat fast enough. A single, larger-diameter gas cylinder pushes heat out far quicker than a twin-tube design ever could, which means the damping force you get on mile one is roughly the damping force you still get on mile three hundred. The KYB MonoMax Shock Absorber 565011 wraps that cylinder in a large zinc-coated housing built to shrug off road salt, mud, and years of exposure without corroding from the inside out. Compressed, it measures 13.94 inches. Fully extended, 22.17 inches. Total travel comes in at 8.23 inches, enough stroke to soak up real off-road impacts without bottoming out and slamming your frame.

Where It Bolts In

If you’re double-checking kyb 565011 rear shock fitment before you commit to buying, here’s the short version. This rear unit was engineered for the 1989 through 2009 Ford Ranger, the Ford Bronco II, and the 1993 through 1998 Jeep Grand Cherokee. These are trucks people still work out of, still tow with, still take down fire roads on the weekend. KYB didn’t design a universal shock and slap a Ranger sticker on it. They built this one around the actual geometry of those rear axles.

What Changes When You Upgrade

Ask around about kyb monomax 565011 upgrade benefits and you’ll hear the same thing from people who’ve actually swapped a set in. Body roll through a corner drops noticeably. Trailer squat, that sinking feeling in the rear when you hook up a loaded utility trailer, mostly disappears. High-pressure gas charging means the shock reacts to what the road is doing right now instead of lagging a half second behind like a tired OEM unit does. You feel it most on washboard gravel, where a worn shock just skips across the bumps and this one stays planted.

Getting It Installed

For anyone hunting kyb 565011 installation tips before popping the hood, the mounting hardware is straightforward. The lower mount is a 12mm E2 configuration, and the upper mount uses a 5/8 inch E1 bushing. Standard hand tools handle the job. A socket set, a jack, maybe a breaker bar if the old bolts have rusted in place. No special tools, no trip to a shop, no waiting a week for an appointment.

Stop white-knuckling it every time you hit a pothole with a trailer behind you. Add the KYB MonoMax Shock Absorber 565011 to your cart and give that rear end something to actually hold onto the road with.
