Projector Headlights vs Reflector Headlights: what you gain and what to check before upgrading

A projector headlight adds a lens and a cutoff shield to the reflector design. That gives a sharper edge on the beam and less glare for oncoming drivers, as long as the housing is built for the bulb and aimed properly. A reflector headlight is a simpler mirrored bowl: cheaper, shallower, and fine when everything matches. Projector doesn’t mean automatically brighter. If you drive a 2010 Mustang, we stock both types, and this guide covers how to choose and what to check first.

Projector Headlights vs reflector headlights at a glance

.	Reflector	Projector
How it directs light	Mirrored bowl behind the bulb	Small reflector, cutoff shield and a lens
Beam edge	Softer, more scatter	Sharper cutoff line
Glare for other drivers	Depends on bulb and housing match	Lower when designed and aimed right
Housing depth	Shallower	Deeper
Cost	Lower	Higher
Bulb access	Usually simple	Varies by assembly

How each one works

A reflector headlight puts the bulb near the focal point of a curved mirror. The mirror throws the light forward. It’s simple, which is why it’s cheap and why it has been standard for decades.

A projector gathers the light in a compact reflector, passes it across a shield that cuts off the top of the beam, and sends it through a lens. The shield is what creates the clean line between lit road and dark. Many assemblies mix the two, with a projector for the low beam and a plain reflector for the high beam.

What is a halo projector headlight?

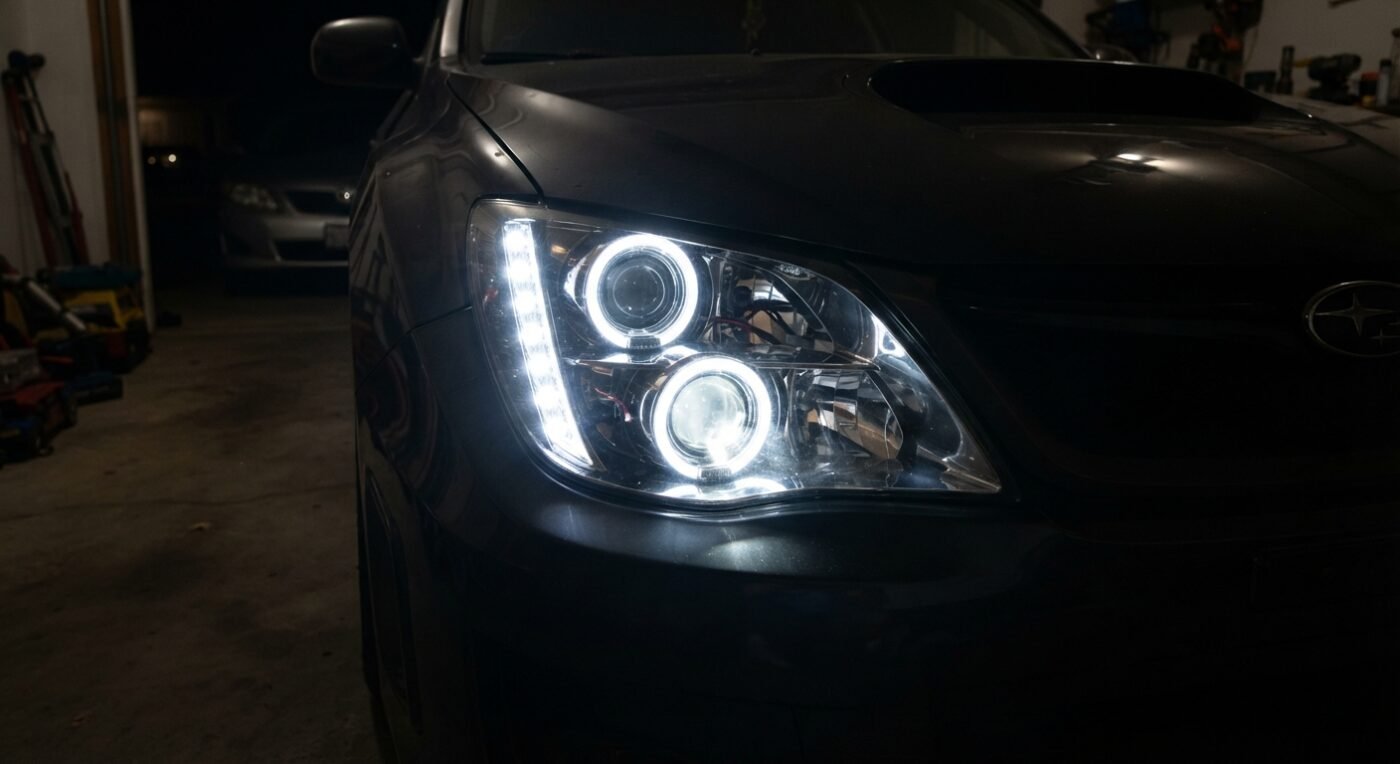

A halo projector headlight is a projector headlight with a ring of light around the lens, often called an “angel eye.” The ring is styling, not part of the projector optics. The projector itself does the work of shaping the beam, and the halo just glows around it.

What you actually gain

The real gain from a projector is control. The cutoff shield puts light on the road instead of into oncoming windshields, and the beam tends to be more even, with fewer dark patches than some reflector designs.

What you don’t automatically gain is brightness. A halogen projector can feel less bright than people expect, and a bulb that doesn’t suit the housing makes things worse, not better. A good match in a plain reflector can outperform a mismatch in a projector. Beam shape, aim and the bulb-and-housing combination matter more than the name on the box.

How to tell which one you have

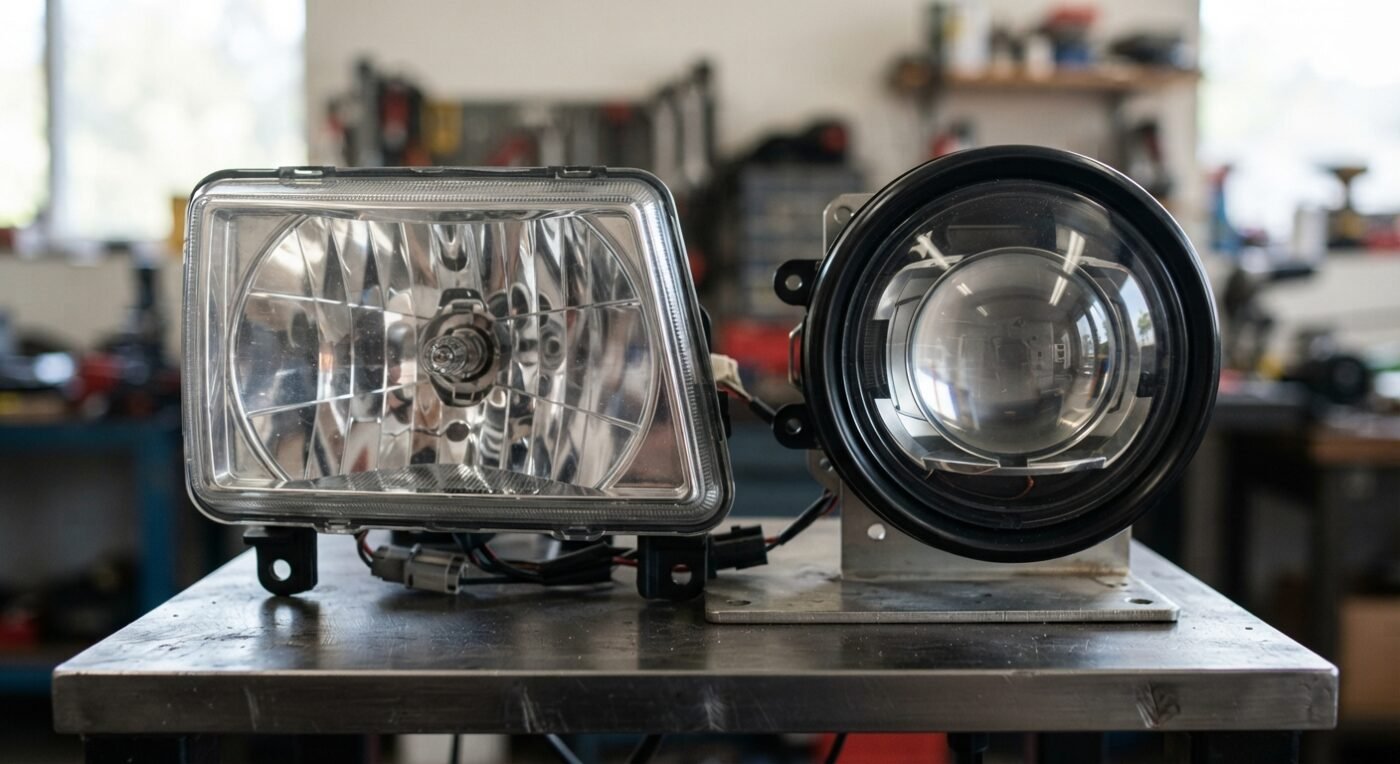

Look at the lens from the front. A faceted chrome bowl means reflector. A round glass optic like a small magnifier means projector. Check both beams, because one assembly can use a projector for low beam and a reflector for high beam.

What to check before upgrading

1. Fitment by year. Headlights are year-specific. Our halo and Replace assemblies are listed for the 2010 Mustang with factory halogen headlights. Don’t order them for another year.
2. Pair or single. The Spec-D halo ($253) and Euro ($80) are sold as pairs. The Replace unit ($108) is a single side, housing and lens only.
3. What’s included. The halo set includes H1 bulbs and corner bulbs. The Euro set doesn’t include bulbs and reuses your stock H13 and signal bulbs.
4. Match the bulb to the housing. See the table below.
5. Compliance markings. Look for DOT and SAE stamps on the lens. See the FAQ for what the stamp does and doesn’t prove.

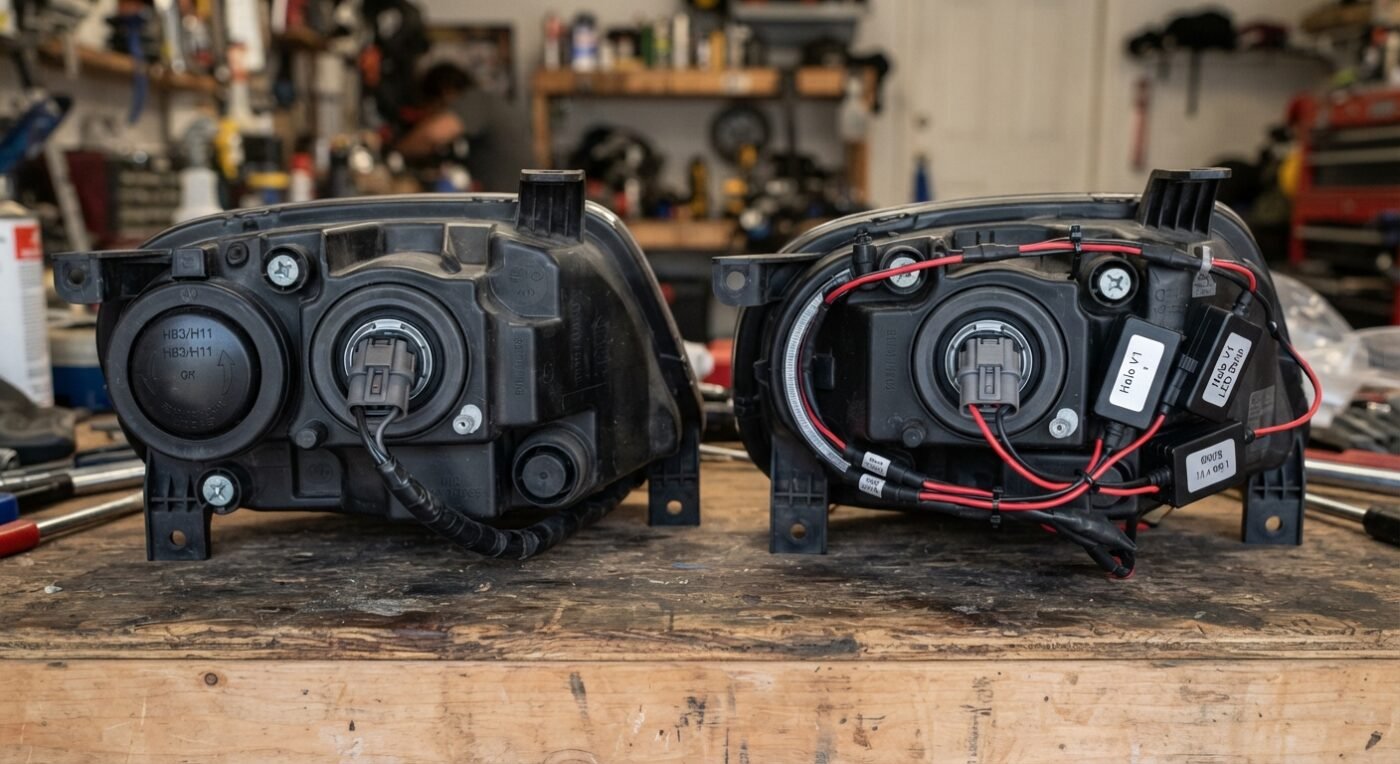

6. Wiring. The main headlight sockets are plug-and-play. On the Spec-D assemblies, the halo rings and LED strips need two wires tapped into the factory parking light harness.
7. Aim after installing. A projector’s sharp cutoff has to be set correctly or you’ll blind oncoming drivers. Aim after any new headlight, using your service manual or a shop.
8. Skip DIY retrofits. Putting projector parts into a housing that wasn’t designed for them is easy to get wrong. This guide is about complete assemblies.

Match the bulb to the housing

Bulb	In a reflector housing	In a projector housing
Halogen	Standard, cheap, easy to replace	Works, but can feel less bright
LED	Fine only if the housing was designed for LED	Fine only in a projector designed for that LED
HID	Glare risk in a basic reflector	Better suited, in a housing built for it

A housing is built around one light source. A halogen filament sits in one precise spot, and an LED chip doesn’t, so a drop-in LED bulb in a halogen housing scatters light and creates glare. Testers on a Tacoma forum documented it, and one auto-repair site argues retrofit LED bulbs can’t meet the federal headlight standard in housings designed for halogen.

When to keep your reflectors

Keep a reflector if your current housings are clear, intact and aimed correctly, and you mostly want a modest upgrade. A fresh set of the same type costs less than a projector assembly, and some forum testers report a better halogen bulb in the right housing is the simplest way to see more. If hazy lenses or cracked housings are the real problem, a new assembly of the same type fixes that.

Which of our assemblies is which

Assembly	Price	Optics	Sold as	Fits	Notes
Spec-D Black Dual Halo Projector with Parking LEDs	$253	Projector low beam, reflector high beam	Pair	2010 Mustang with factory halogen	Includes H1 and corner bulbs; 1-year limited warranty
Spec-D Black Euro	$80	Multi-faceted reflector	Pair	2010 Mustang, Ford	No bulbs; designed for H13 (9008)
Replace replacement headlight	$108	Factory-style reflector	Single side	2010 Mustang	Housing and lens only
Replacement headlight	$82	Standard reflector	Pair	2010 Mustang, 2011 Ranger

If you drive an F-150 or Ranger, we don’t currently list a projector assembly for either. You can still browse the F-150 headlights and Ranger headlights, but check fitment by year first.

FAQ

Does a DOT or SAE stamp mean headlights are legal everywhere?
It’s the marking to look for, and an assembly built to the federal lighting standard is the right starting point. But sources disagree on what the stamp proves: one seller points out that DOT doesn’t approve aftermarket parts, while a legal reference treats the marking as enough, and states can add their own rules on colour and aim. Check your state’s rules before you install.

Are halo rings street legal?
It depends on the colour and how they’re wired. General guidance says headlights must be white or amber, and extra lighting is regulated by state. Check your local rules.
